RhinoResurf for Rhino (educational version)

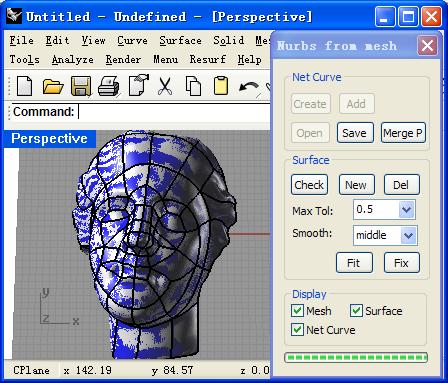

RhinoResurf for Rhino is a reverse engineering plug-in for Rhinoceros 4.0. This plug-in gives Rhino the ability to reconstruct the geometry represented by NURB surface of an object from a mesh or point cloud which describes it. RhinoResurf for Rhino can drape a surface over a point cloud with specified tolerance. Draping a surface is similar to laying a piece of cloth over an object. The surface is deformed to take the shape of the object along the drape direction. The drape direction is calculated automatically. Command: RsPoints2Surf RhinoResurf for Rhino can convert an open mesh model to a single NURB surface with specified tolerance. The mesh is allowed to have interior holes in the model. Command: RsMesh2Surf RhinoResurf for Rhino can create a nurbs surface from selected curves (such as contour curve). Command: RsCurves2Surf RhinoResurf for Rhino can convert an open or closed mesh to multiple NURB surfaces. User selects a mesh, and defines a curve network by drawing lines on the selected mesh. Then just click one or two buttons, the selected mesh will be converted to multiple NURB surfaces with specified tolerance. The transition between any two NURBS surface patches reaches G1 continuity. Command: RsMesh2Surfs RhinoResurf for Rhino can automatically generate nurbs surfaces from a selected mesh. Command: RsAutoNurbs RhinoResurf for Rhino can create a mesh from selected point cloud. Command: RsPointCloud2Mesh
